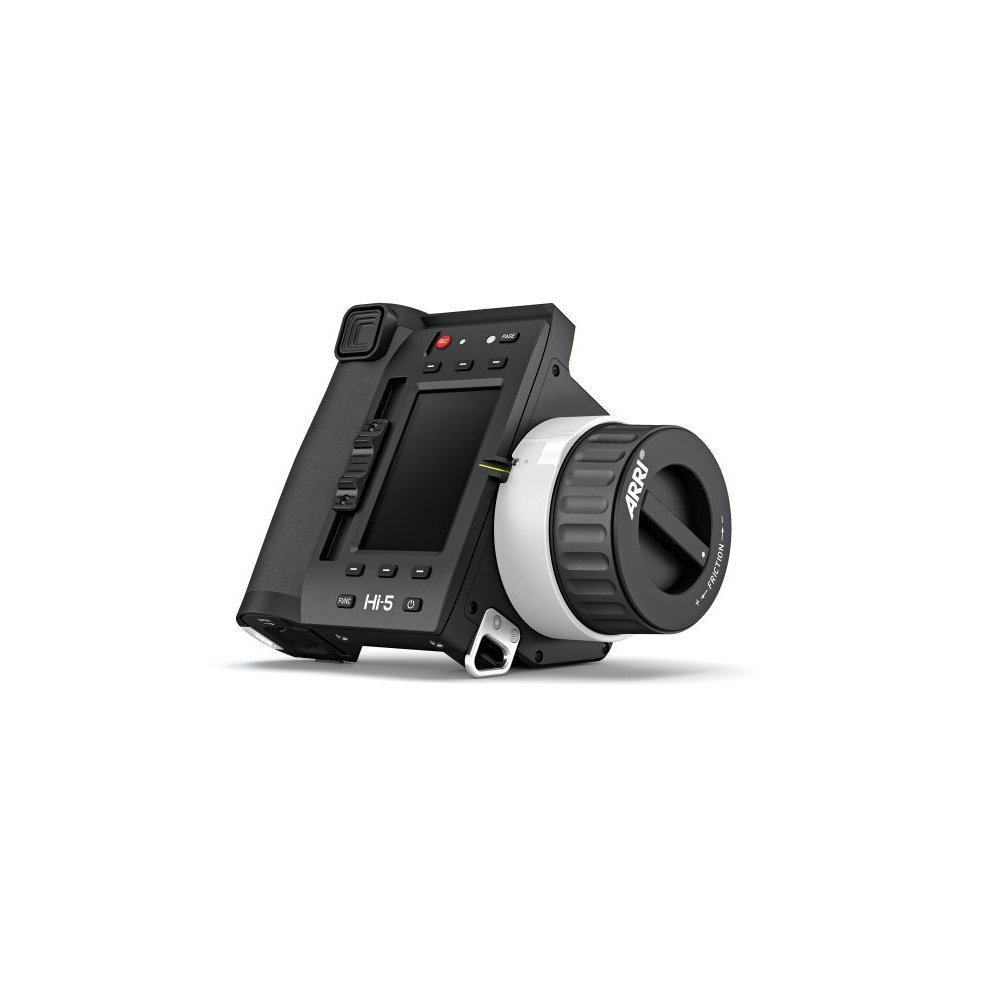

ARRI Hi-5 Hand Unit Basic Set
£9,900.00 £8,250.00
Order Now - Usually delivered in 7-10 days
ARRI Hi-5 Hand Unit Basic Set (KK.0041791) is the most sophisticated hand unit on the market, providing reliable wireless control of cameras and lenses. With Bluetooth Dongle, Blank Smart Focus Ring, RF-EMIP Radio Module 2400MHz DSSS, LBP-3500 Battery, Hi-5 PanzerGlass.
ARRI Hi-5 hand unit with white-coded RF-EMIP radio module and accessories. Compatible with ALEXA Mini LF, ALEXA LF, ALEXA Mini, ALEXA SXT W, ALEXA 65, cforce mini RF, UMC-4 and RIA-1/RF-EMIP. Hi-5 – Fifth-generation intelligent hand unit.
ARRI Hi-5 is the most sophisticated hand unit on the market, providing reliable wireless control of cameras and lenses. Weatherproof and solidly built, it features an exceptional radio link range and unique, swappable radio modules for different territories and shooting challenges. The new Hi-5 is central to the fifth-generation ecosystem of ARRI’s Electronic Control System (ECS).
Features include hot-swapping battery support, optional radio modules for different regions, user-defined function buttons, pre-marked Smart focus rings, an integrated NATO rail, and a waterproof design to use in all-weather environments. Using the included Bluetooth dongle, the Hi-5 can be configured and updated using the ECS Sync app for iOS. It can also be used to update LBUS devices and configure the Hi-5. The included 2400 MHz radio module allows you to connect wirelessly with the RIA-1 radio interface adapter.
Features
- Hi-performance: strong radio signal over long distances
- Hi-versatility: swappable radio modules for different locations
- Hi-speed: fast and efficient on-set ecosystem
- Hi-tech: future-proof hardware and software architecture
- Hi-reliability: robust, weatherproof, long battery life
Comes With
- 1x Hi 5 Hand Unit with Bluetooth Dongle
- 1x Blank Smart Focus Ring
- 1x K2.0033702 RF-EMIP Radio Module 2400MHz DSSS
- 2x LBP-3500 Battery
- 1x LBP Charger
- 1x Neck Strap
- 1x Hand Strap
- 1x K2.0040015 Hi-5 PanzerGlass Screen Protector
Please note: images are for illustrative purposes only, and come with a BLANK Smart Focus Ring. Click Here for more information on the ARRI Hi-5 Ecosystem
Additional information
| BRAND | ARRI |
|---|---|
| MPN | AI-KK.0039973 |
Specification
| Focus Knob | LED backlit rotary knob with adjustable friction, 3.0” diameter, 16 bit native encoder resolution |
| Iris Slider | Fully sealed slider mechanism, 14 bit native encoder resolution |
| Force Pad | Force sensitive joystick, x/y-direction |
| Display | Transflective TFT-LCD display (readable in bright sunlight) 3.0″ diagonal |
| Weight | 830 g / 29.30 oz (when with Bluetooth dongle and Smart Focus Ring Blank) |
| Interfaces | 1x LBUS (4pin Lemo) |
| 1x SERIAL (4pin Lemo) | |
| 1x Radio Adapter Interface (10pin IRISO) | |
| 1x USB-A | |
| 1x USB-C | |
| Power Supply | ARRI LBP-3500 battery pack |
| LBP Battery Charger | |
| NP-F550 battery (Sony) or compatible batteries | |
| Power via USB-C port through an external power supply | |
| Power via LBUS interface | |
| Supply Voltage | LBUS interface: 10.5 V – 34.0 V |
| Battery: 7.4 V | |
| Power Consumption | Without radio module: 222 mA @ 7.4 V |
| With RF-EMIP radio module: typ. 270 mA @ 7.4 V | |
| With RF-2400 radio module: typ. 370 mA @ 7.4V | |
| With RF-900 radio module @ 100 mW: typ. 330 mA @ 7.4 V | |
| With RF-900 radio module @ 1 W: typ. 480 mA @ 7.4 V | |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
