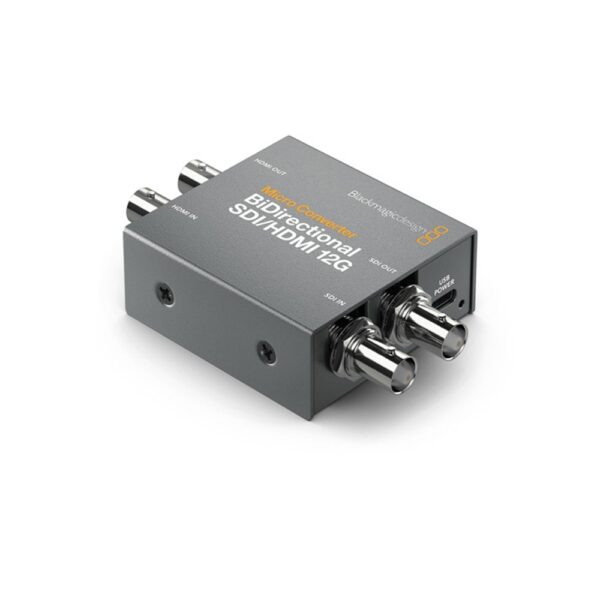

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G PSU
£163.80 £136.50
Blackmagic Micro Converter BiDirectional SDI/HDMI 12G PSU (BMD-CONVBDC/SDI/HDMI12G/P). This model can convert in both directions, in different standards at the same time! You can convert SDI to HDMI and HDMI to SDI simultaneously. Plus it supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers!
Blackmagic Micro Converters are so small you can use them anywhere! That means it’s always easy to keep a few available for any urgent conversion task! Because they are extremely high quality, you can trust them for all kinds of broadcast, live production, and on set use. Use them to turn any computer display, television, or video projector into a high quality color calibrated broadcast monitor. They’re also perfect for converting the HDMI outputs of computers and consumer video cameras to high-end SDI equipment. Imagine using a slide show running on a computer for high-end broadcast-quality titles in live production! You could even use them for extending HDMI long distances using SDI.
Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into an incredibly strong metal enclosure. Each converter has the highest quality broadcast industry standard SDI and HDMI connectors. Blackmagic Micro Converters include a USB connection for power, as well as for changing settings via the converter utility on Mac and Windows. Because the USB powers the converter, you can even power it from televisions or laptop computers. There are even LEDs for status. You can also buy Blackmagic Micro Converters with an AC power supply including 4 adapters for international use.
All Blackmagic Micro Converter models support SDI formats including 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI and 2Kp60 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI and 2KPsF30 DCI. HDMI video standards include 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94 and 1080i60. Plus 3G level A and B are supported.
Comes With
- 1x Blackmagic Micro Converter BiDirectional SDI/HDMI 12G wPSU
Additional information
| BRAND | BLACKMAGIC |
|---|
Specification
Connections
SDI Video Outputs
Automatically matches the HDMI video input.
HDMI 2.0 Video Inputs
1 x type A.
HDMI 2.0 Video Outputs
1 x type A.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
Multi Rate Support
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Updates, Configurations and Power
USB Type‑C.
Reclocking
Yes
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
SDI Video Rates
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
SDI Color Precision
4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.
HDMI Video Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
HDMI Color Precision
4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.
HDMI Color Space
YUV
Copy Protection
Always confirm copyright ownership before capture or distribution of content.
Camera Control
Settings Control
Via MacOS™ and Windows™ software utility connected by USB.
Operating Systems
Mac 10.15 Catalina,Mac 11.1 Big Sur or later.
Windows 10, 64-bit.Software
Power Requirements
Power Consumption
5W max.
Operational Voltage Range
4.4V to 5.25V DC
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Physical Specifications
Features
- Extremely small design for portable operation.
- Supports upgrading software via USB connection.
- Includes 3D LUT for monitoring on SDI to HDMI model.
- Includes support for HDR via SDI and HDMI.
- Supports 12G-SDI and HDMI timecode standards.
- Features 12G-SDI technology with built in SDI re-clocking.
- Includes camera control features for Blackmagic ATEM switchers.
- Supports all video standards in NTSC, PAL, 720 HD, 1080 HD and 2160 Ultra HD.
- Models can be purchased with or without power supply.
What's Included
Micro Converter BiDirectional SDI/HDMI 12G wPSU
+5V universal power supply with international socket adapters.
