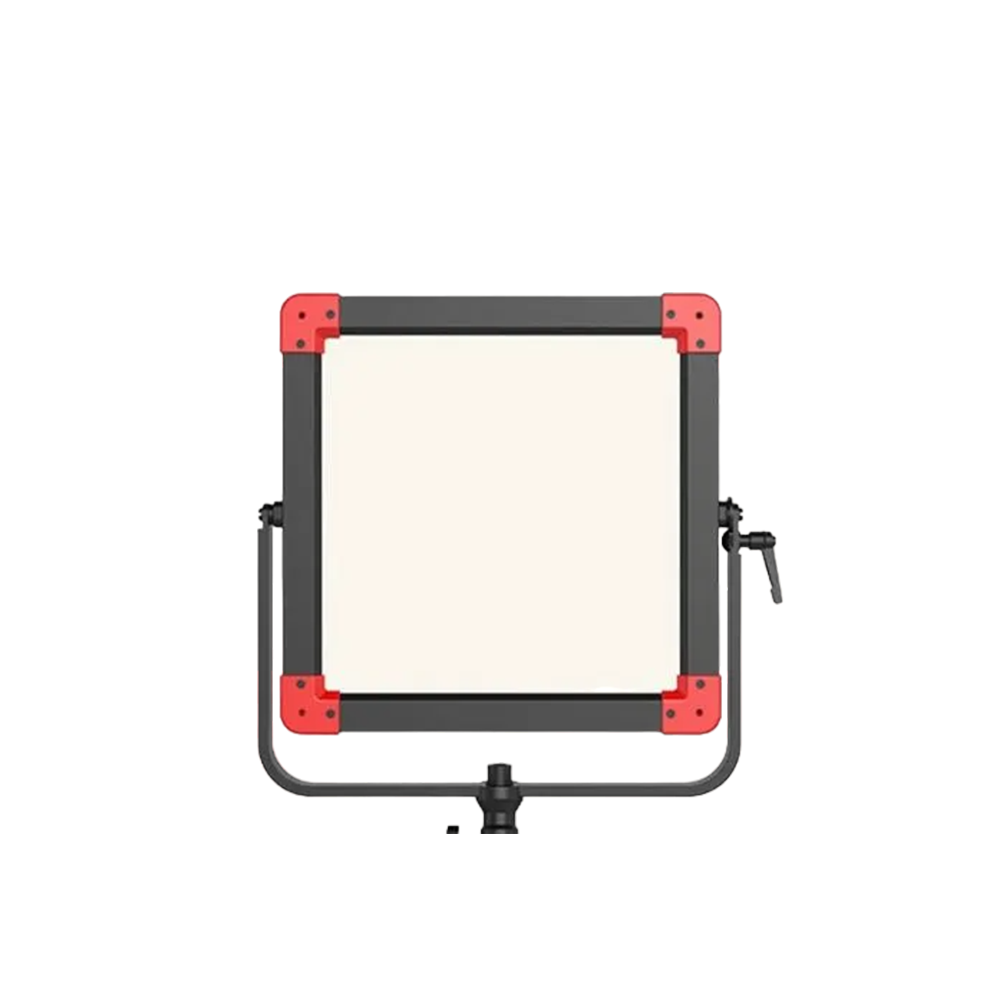

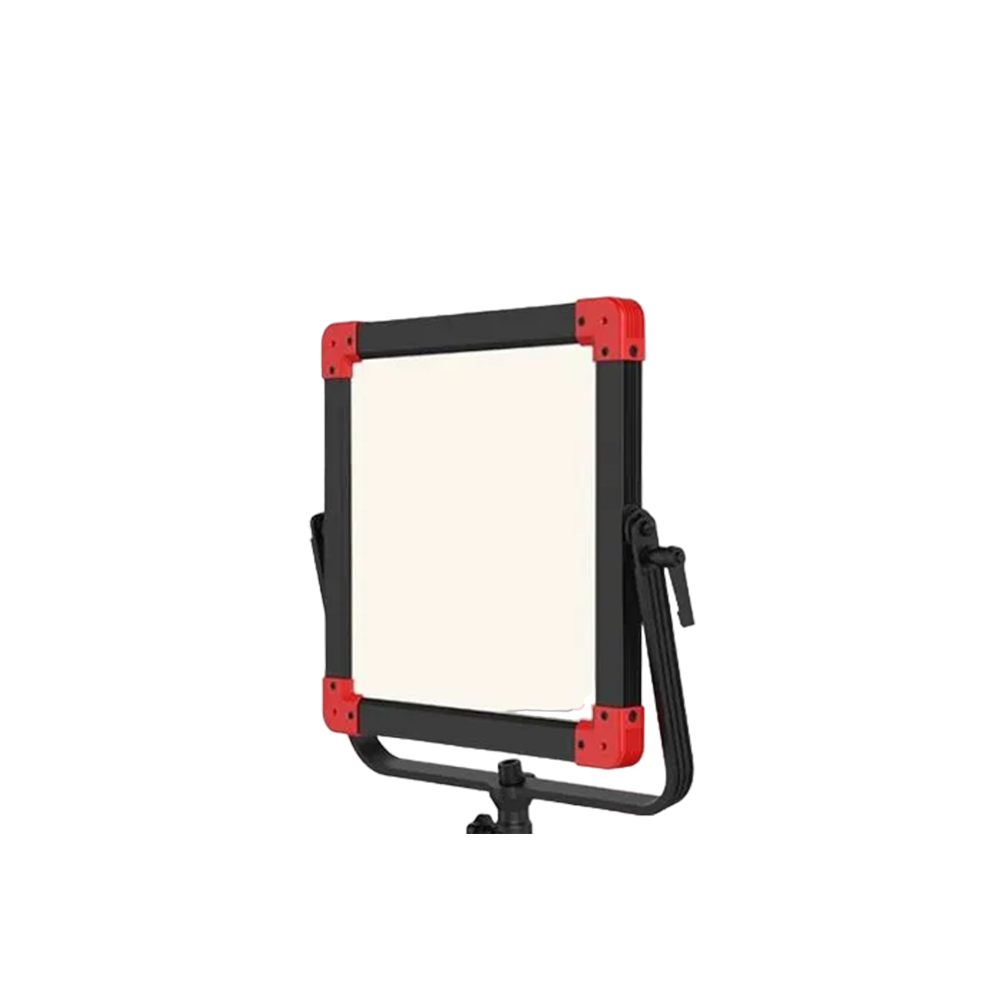

Swit PL-E60P 3KIT 60W IP54 Waterproof SMD Panel LED Light

Swit PL-E60P 3KIT 60W IP54 Waterproof SMD Panel LED Light (PL-E90P 3KIT) is an advanced version of PL-E60D, with additional IP54 rainproof structure. The light can work in the rain at any angle without external protections, and provides IP54 rainproof V-mount batteries to work together.

320pcs Edge Mounted LEDs
Super thin, soft and glareless

PL-E60P is specifically designed for field portable lighting applications. 320pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E60P can output bright, soft and equally spread light. Te light body is slim and portable, which is ideal in an interview kit and for field video production.

Laser Dots 90° Light Guide
High efficiency and super bright

SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost. Then the slim edge mounted light can also be high brightness.

1500 Lux @ 1 meter
0-100% flick-free dimming

PL-E60P outputs 60W power, feeds 1500Lux luminance at 1 meter distance (center), much brighter than other similar size LED panels.

The effective beam angle reaches 70°, bounded by 50% decline. PL-E60P also supports 0 to 100% PWM digital dimming, smooth and non-flickering.

Bi-colour Temperature
2700K-6500K continuously adjustable

PL-E60P alternates between 2700K and 6500K LEDs, the output colour temperature can be continuously adjustable between 2700K and 6500K.

High Colour Render Index
CRI Ra 98; TLCI 99

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.

The normal LED light has 80-85 CRI or TLCI, while PL-E60P offers the super high CRI at 98 and TLCI at 99, and will not lost the object original colours.

LCD Screen Display
Dimmer / colour / DMX channel, battery info

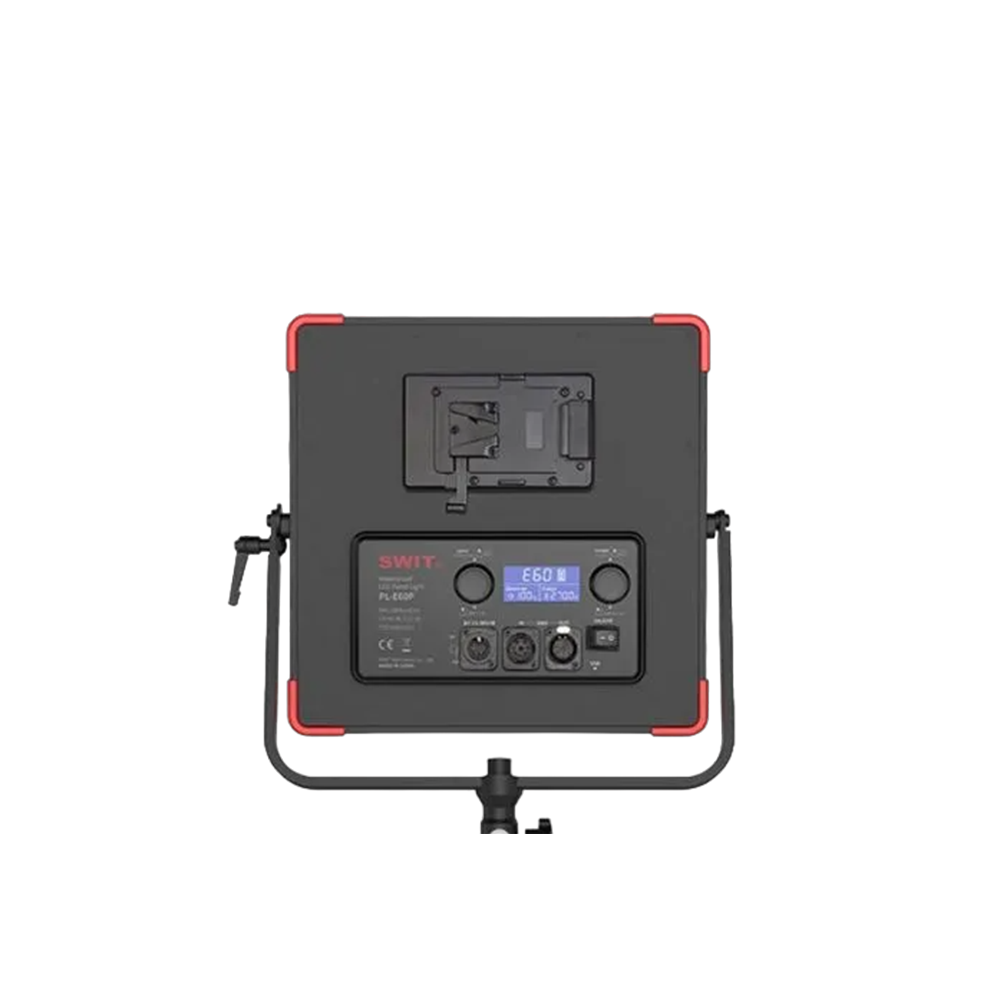

The rear LCD screen can display the current dimmer percentage, colour temperature value, DMX channel and CH channel, and remaining battery indications.

DMX512 Control
Dimmer and Colour temperature

PL-E60P adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and colour temperature by DMX controller.
The dimmer and colour temperature occupy 1 DMX address respectively.

Press and hold dimmer knob for 2 seconds to enter communication address setting interface, the address setting range is 001 to 512.

Quick Adjust Mode
By pressing the adjusting knob

PL-E60P supports quick adjusting brightness and colour temperature: Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick adjust brightness; Press Colour temperature knob, it will switch from 50K stepping to the following commonly used colour temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.
