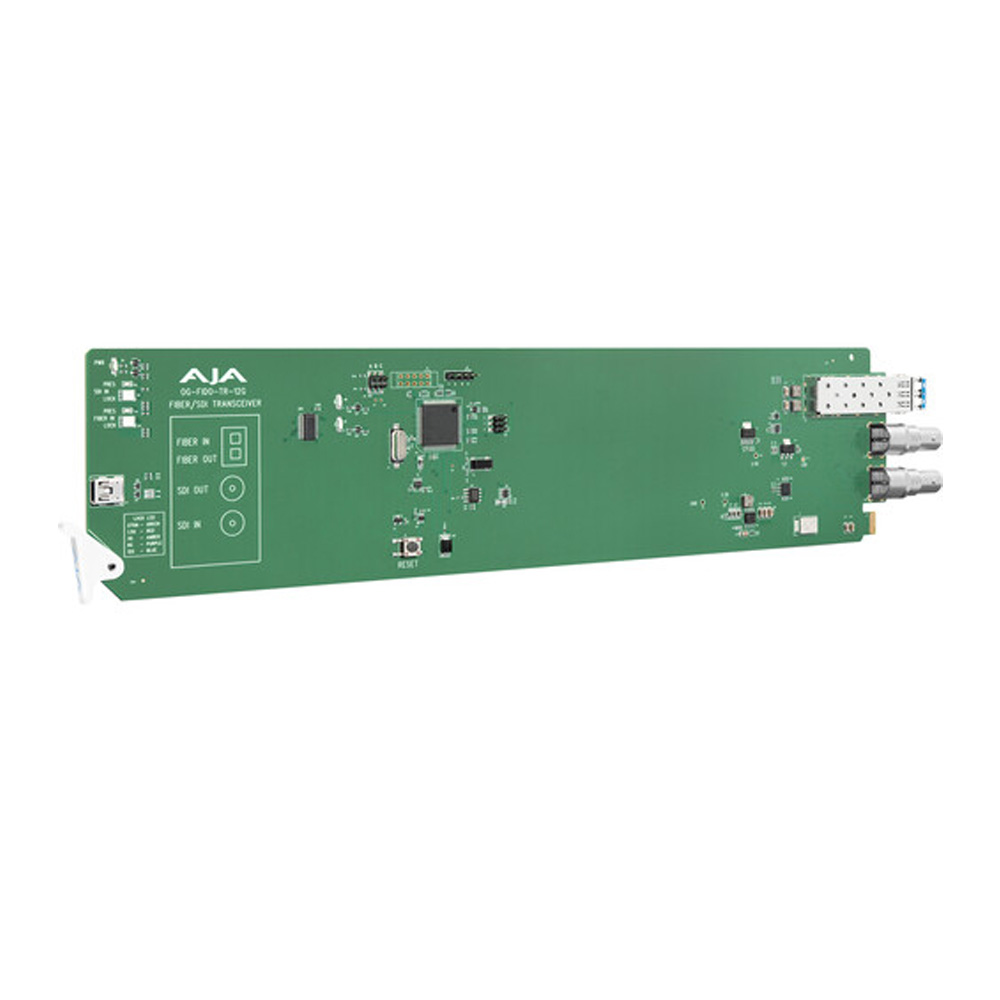

AJA OG-FIDO-TR-12G openGear 12G-SDI/LC Single Mode LC Fiber Transceiver
£2,088.00 £1,740.00
The OG-FiDO-TR-12G is a state of the art, openGear compatible 12G-SDI/Fiber transceiver. Both 12G-SDI to Fiber and Fiber to 12G-SDI conversions are supported.
openGear cards offer unmatched flexibility and cost efficiency for 12G-SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) for single mode.
AJA openGear products are designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS® and Linux®, offering remote control and monitoring over a PC or local network.
Connectivity
Both Fiber and 12G-SDI inputs are reclocked with best in class input jitter tolerance. 12G-SDI input and output support, which includes 6G/3G/HD/SD-SDI. Both signal paths are independent and can be different rates. Supports single mode fiber cable.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).
Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.
Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
DashBoard Software
DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.
Additional information
| BRAND | AJA |
|---|---|
| MPN | AJA-OG-FIDO-TR-12G |
Specification
Video Formats
- 270 Mbps – 12 Gbps, format agnostic
Video Input Digital
- 1-channel independent 12G-SDI BNC connector, SMPTE 259/292/424/2081/2082
- 1-channel independent Single Mode LC Fiber connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength:
- Rx 1260 nm (min), 1620 nm (max)
- Optical Sensitivity:
- -10 dBm (min 6 and 12 Gbps)
- -14 dBm (min 270 Mbps, 1.5 Gbps and 3 Gbps)
- Overload Power: -2 dBm (min)
Video Output Digital
- 1-channel independent 12G-SDI BNC connector, SMPTE-259/292/424/2081/2082
- 1-channel independent Single Mode LC Fiber connector, SMPTE-297/259/292/424/2081/2082
- Nominal Wavelength:1260 nm (min), 1310 nm (typ), 1360 nm (max)
- Optical Power: -5 dBm (min), 2 dBm (max)
- Extinction Ratio: 3.5 dB (min)
Reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select
- All other rates are passed through and not reclocked
User Interface
- openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h)
- openGear standard form factor, front slot and rear card, two slots required for each card
Weight
- 0.5 lb (0.3 kg)
Power
- openGear frame compatible, 3 watts max per card
Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
Features
- Video Formats: 270 Mbps – 12 Gbps, format agnostic
- Inputs: 1x 12G-SDI BNC; 1x Single-Mode LC Fiber Connectors
- Outputs: 1x 12G-SDI BNC; 1x Single-Mode LC Fiber Connectors
- Monitor via openGear DashBoard
- Support for HDR – High Dynamic Range video
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select
- Nominal Wavelength; Tx: 1310 nm (typ), Rx :1260-1620 nm
- Power: 3 watts Max
- Hot-swappable
- Remote Ethernet Monitor through Ross DashBoard software
- Appropriate Fiber SFP included
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
- Five year warranty
