Bolin EG40N NDI-High Bandwidth/HX3 Decoder
£1,198.80 £999.00
Bolin EG40N NDI-High Bandwidth/HX3 Decoder (EG40N), send NDI audio and video to your displays with this High-Bandwidth NDI Decoder.

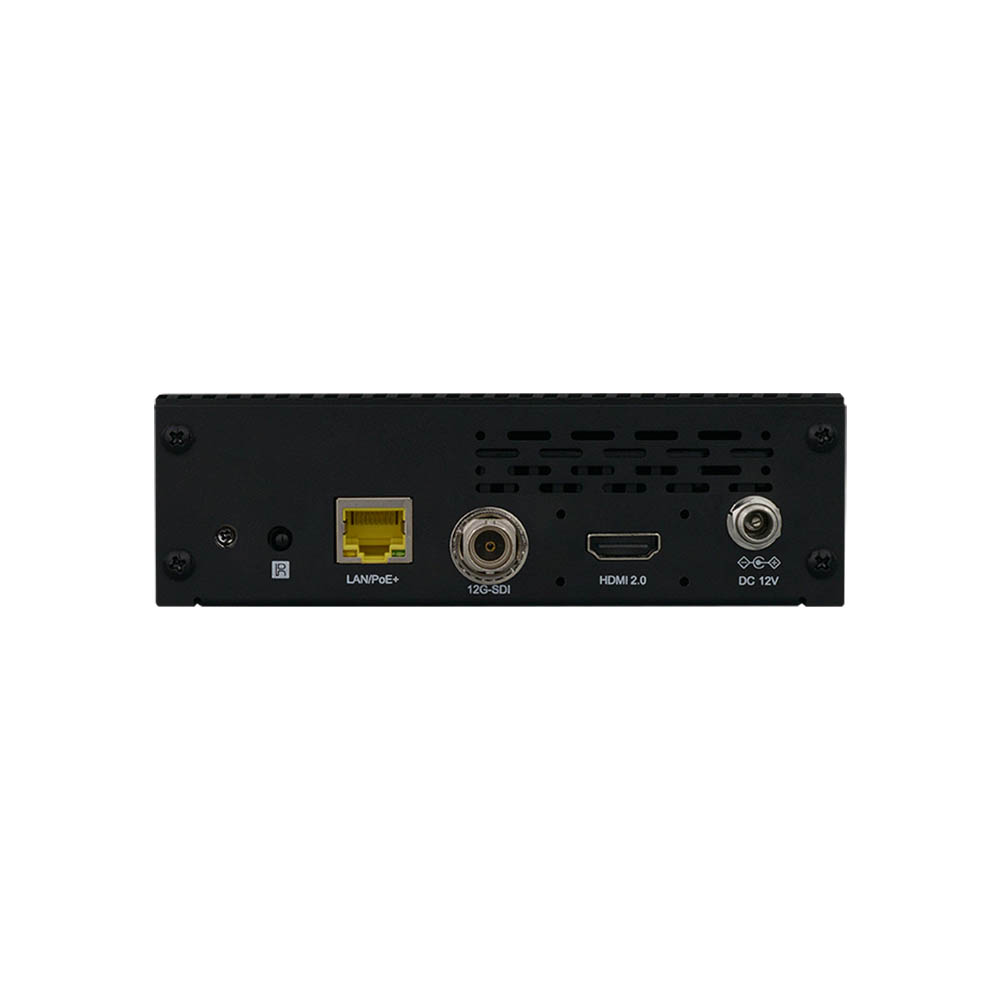

The EG40N features high-bandwidth NDI Ethernet input and HDMI 2.0 and 12G-SDI output for monitors. Both HDMI and 12G-SDI output ports support up to UHD 4K60 video for demanding conference room, house of worship, live event, or education applications.
Features
- Support up to 4K60
- Upscalable up to 4K60
- Hardware FPGA based codec, high-quality image with ultra low latency
- HDMI 2.0 + 12G-SDI video output
- All video with audio embedded
- Audio intercom with frontend device
- On-screen character generator
- Firmware upgrade via IP
- POE+ and 12VDC power input
Comes With
- For models: EDGE Series Decoder
- IR Remote Controller
- RS422 RJ45 Adapter
- Surface Mount Kit
- Base Mount kit
- HDMI Cable Secure Mount
- Mounting Screw Set
- 12VDC 2A, Power Supply Adapter with Power cord: United States, Europe, England
Additional information
| BRAND | Bolin |
|---|
Specification
| Encoder/Decoder | Decoder only | |
|---|---|---|
| Decoder (Video Output) | HDMI & SDI | |
| Video Codec | NDI High Bandwidth (NDI 6 Ready), NDI HX3 supported, AVC-H.264 / HEVC-H.265 selectable | |
| Codec Platform | Hardware FPGA FAST HEVC codec | |
| Video Resolutions | 3840 x 2160P @60/59.94/50/30/29.97/25/24/23.98 1920 x 1080P @60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i @60/59.94/50 1280 x 720P @60/59.94/50/30/29.97/25 | |
| Color Space(HDMI) | 4K60: RGB 8bit, YUV444 8bit, YUV422 12bit, YUV420 8bit/10bit 4K30 & below: RGB 8bit/10bit, YUV444 8bit/10bit, YUV422 12bit | |
| Audio Formats | 3.5mm Jack, analog audio, stereo (unbalanced); Line in/out – audio intercom, Line out – HDMI audio output | |
| Video Streaming | 1 stream | |
| Latency (Results may vary depending on network configuration and management settings) | NDI certified, <100ms | |
| Bandwidth (Results may vary depending on network configuration and management settings) | A | 4kp60 4:2:2/12bit; 250Mbps |
| B | 1080p60 4:2:2/12bit; 80-110Mbps | |
| Ecosystem | NDI 6, NDI HX3 | |
