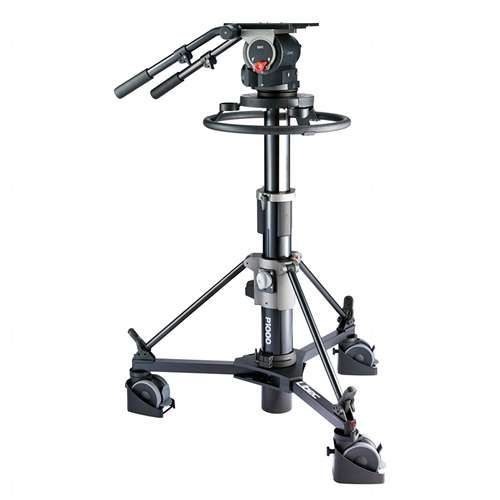

LIBEC QD-10PD PEDESTAL SYSTEM

Libec P1000 150mm flat base pedestal system for outside broadcast and studio use with QH1 Fluid Head.

Upper Column with Perfect Balance Feature, Mid Column with Gas Spring Assist

The gas spring inside the P1000 pedestal supports the mid column’s elevation, allowing safe and easy height adjustments and setups with heavy equipment.

Removable Structure for Easy Transportation

The P1000 can be easily disassembled into the P1000 Column, the steering handle, and the dolly. This makes the P1000 easy to transport within studios and outside broadcast sites.

High Performance Casters with Track Lock Mechanism

The high performance 125mm large casters are equipped with removable cable guards. The casters has a track lock mechanism which allows users to set and move the dolly in three different modes: Free Mode, Tracking Mode, and Steer Mode. The caster’s locking sound is minimal.

Easy-Read Air Pressure Meter

Air pressure can be easily checked with the air pressure meter.

Flat Base with High Compatibility

Not only compatible with Libec heads but other brand heads as well. With optional accessories, ball based heads can also be attached on this pedestal.

Drag Knob for Upper Column

Upper column friction can be adjusted to preferred settings with the drag knob.

QH1 Fluid Head

Heavy duty QH1 Fluid Head with 2x Extendable Pan Handles PH-15, centre tilt lock, snap on/off sliding plate, smooth counterbalance system and 150mm ball base adapter.Â

For the camera system’s safety, the head can be physically locked into a centre tilt position.Even at a distance, the arrow shaped knob and Lock/Unlock symbols are visible. The BL-150 ball base adapter is included inside the kit, which converts the flat base head into a 150mm ball head.Â

The Smooth Counterbalance System is a unique Libec technology that allows the counterbalance knob to be adjusted with constant motion to smoothly reach the minimum and maximum power range. The foldaway knob is designed for easy speedy adjustments.

The QH1 Fluid Head supports up to 40kg.
